Description

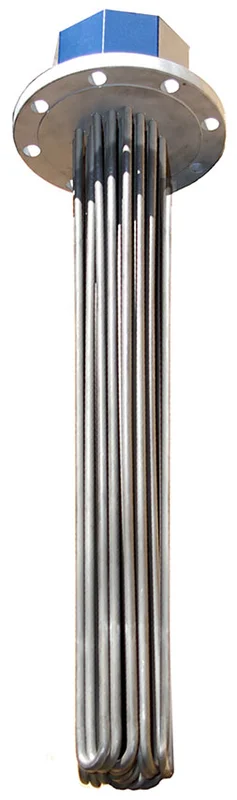

69-7/8 inch, 70kw, 22 watt per square inch flange heater. Suitable for heating light weight oils, caustics, air and gasses.
- Incoloy sheath element (other sheath material available)
- Incoloy thermowell
- 150lb. flange (300lb. available)
- 1 or 3 phase
- 240 or 480 volt
- N1, N4 and N7 Terminal housing options
For heavily corrosive applications, please call. Other sheath material, such as titanium, inconnel, monel and etc., are available.
Optional Flange Heater Configurations:
- T1, T2 and T3 Thermostats
- Process Thermocouples: J, K or 100 ohm RTD
- Hi-Limit over temp thermocouple clamped to element sheath: J or K
