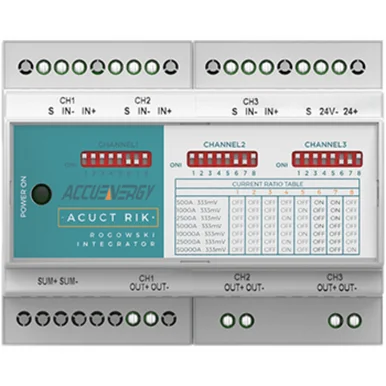

AccuEnergy RIK-MV-3 RIK mV Rogowski Integrator, 333mV Output, 3-Channel, 7 Selectable Ratios, 2.5A-60kA Range, Coil & Power Supply Sold Separately

Description

AccuEnergy RIK-MV-3 : RIK mV Rogowski Integrator, 333mV Output, 3-Channel, 7 Selectable Ratios, 2.5A-60kA Range, Coil & Power Supply Sold Separately

The AccuEnergy RIK-MV-3 RIK mV Rogowski integrator converts a Rogowski coil signal into a 333mV nominal output for meters and monitoring systems that accept 333mV inputs. It is available in 3-channel configurations for single-phase or three-phase applications, with field-selectable CT ratios for flexible commissioning.

Common Applications

• Energy meters and monitoring devices with 333mV nominal inputs
• Single-phase or three-phase current measurement using Rogowski coils
• Crowded panels or large busbars where flexible coils simplify installation

Specifications

• Current Range: 2.5A to 60,000A
• Integrator Output: 0-333mVac
• Accuracy: ±1% full scale error
• Measurement Channels: 3
• Frequency Range: 45Hz to 65Hz
• Mounting: DIN TS-35/7.5 or 15 (DIN 43880) or panel
• Note: Rogowski coil and power supply sold separately
