Description
Specifications

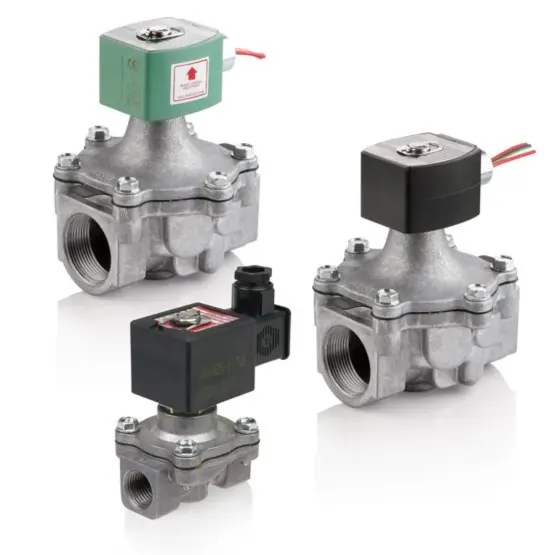

- Valve Actuation: Solenoid – Direct Acting
- Function: 2 way – 2/2 Normally Closed
- Body Material: Aluminum
- Flow (Cv): 138 Cv
- Pipe/Port Type and Size: NPT 3
- Media: Air, Inert Gas, Fuel Gas
- Min Ambient Temperature: 32°
- Max Ambient Temperature: 125°
- Min Fluid Temperature: 32°
- Max Fluid Temperature: 125°
- Product Weight: 34.07 lbs
- Voltage and Frequency: 110 AC, 120 AC with 50/60 Hz
- Watt Rating: 28.2 W
- Holding Current (VA): 50
- Orifice Size: 3 in
- Coil Class: A
- Coil Number: 206409-011-D
- Mounting Direction: 18 inch, Vertical and Upright
- Carton Note: 3 X 3 2NC AL 28.2/F AC
- Kit Number: 302354
- Order Code: 00565
