Description
Specifications

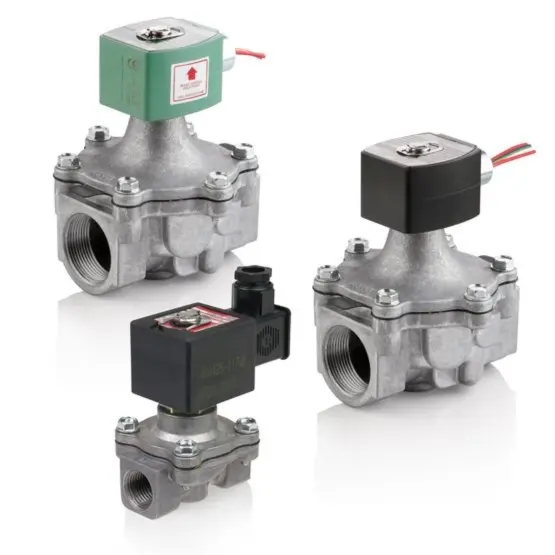

- Valve Actuation: Solenoid – Direct Acting
- Function: 2 way – 2/2 Normally Closed
- Body Material: Aluminum
- Flow (Cv): 4.4 Cv
- Pipe/Port Type and Size: NPT 1/2
- Media: Natural Gas
- Min Ambient Temperature: 32°
- Max Ambient Temperature: 104°
- Min Fluid Temperature: 32°
- Max Fluid Temperature: 104°
- Product Weight: 1.26 lbs
- Voltage and Frequency: 220 AC, 240 AC with 50/60 Hz
- Watt Rating: 10.5 W
- Holding Current (VA): 23
- Orifice Size: 3/4 in
- Coil Class: FT
- Coil Number: 064982-005-D
- Lead Length: 18 inch
- Mounting Brackets: Optional
- Carton Note: 1/2 X 3/4 2NC ALUM 10.5/F AC
- Kit Number: 304089
