Description
Specifications

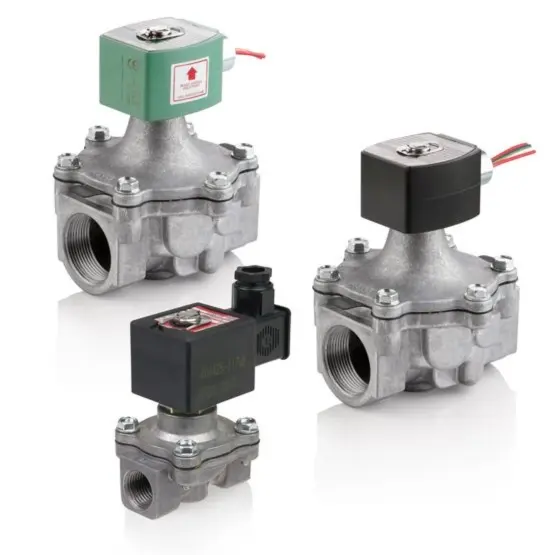

- Valve Actuation: Solenoid – Direct Acting
- Function: 2 way – 2/2 Normally Open
- Body Material: Aluminum
- Flow (Cv): 33 Cv
- Pipe/Port Type and Size: NPT 1 1/4
- Min Ambient Temperature: 32°
- Max Ambient Temperature: 125°
- Min Fluid Temperature: 32°
- Max Fluid Temperature: 125°
- Product Weight: 9.17 lbs
- Voltage and Frequency: 220, 240 Volts AC with 50/60 Hz
- Watt Rating: 15.4 W
- Holding Current (VA): 24
- Orifice Size: 1-5/8 in
- Coil Class: F
- Coil Number: 099257-002-D
- Lead Length: Any, 18 inch
- Carton Note: 1-1/4 X 1-5/8 2NO AL 15.4/F AC
- Kit Number: 304691
