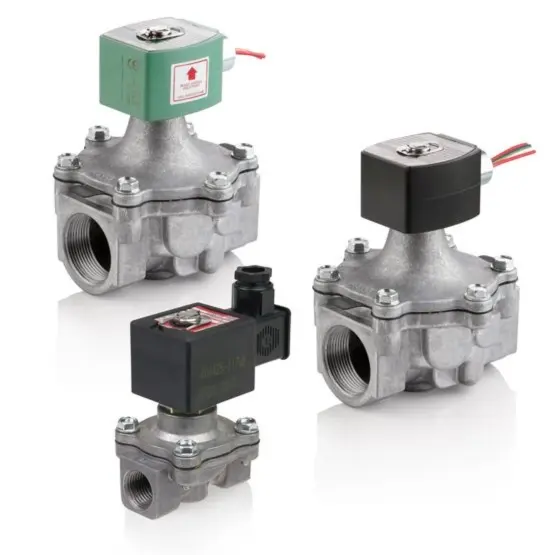

ASCO 8215G003AC120/60D – Fuel, Gas, and Oil Valve

Description

Specifications

• Valve Actuation: Solenoid – Direct Acting
• Function: 2 way – 2/2 Normally Closed
• Body Material: Aluminum
• Flow (Cv): 5.1 Cv
• Pipe/Port Type and Size: NPT 3/4
• Min Operating Pressure (Air): 5 psi
• Max Operating Pressure (Air): 125 psi
• Min Ambient Temperature: 32°
• Max Ambient Temperature: 125°
• Min Fluid Temperature: 32°
• Max Fluid Temperature: 125°
• Product Weight: 1.39 lbs
• Voltage and Frequency: 120 Volts AC with 60 Hz
• Watt Rating: 6.1 W
• Holding Current (VA): 16
• Orifice Size: 3/4 in
• Coil Class: F
• Coil Number: 238210-032-D
• Lead Length: 18 inch, Any
• Carton Note: 3/4 X 3/4 2NC AL 6.1/F AC
• Kit Number: 302349
• Order Code: 20284
