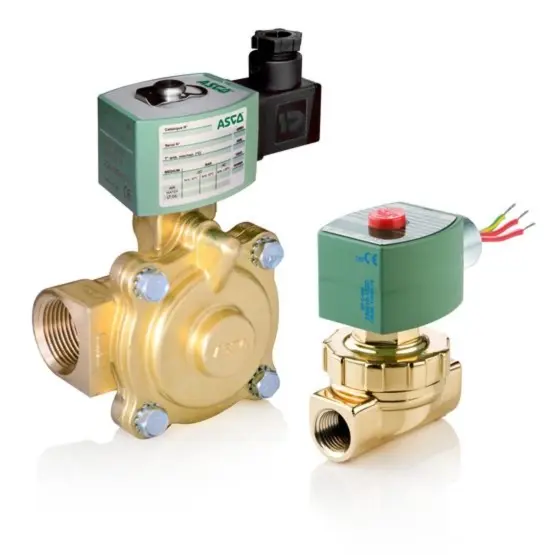

ASCO 8220G403HWAC240/60,220/50D – Hot Water and Steam Valve

Description

Specifications

• Function: 2 way – 2/2 Normally Closed
• Body Material: Brass
• Flow (Cv): 4.4 Cv
• Pipe/Port Type and Size: NPT 3/8
• Voltage and Frequency: 220, 240 Volts AC with 50/60 Hz
• Watt Rating: 10.1 W
• Orifice Size: 1/2 in
• Coil Number: 238810-058-D
• Lead Length: 18 inch
• Carton Note: 3/8 X 1/2 2NC BRASS 10.1/H AC
• Kit Number: 323468-HW
