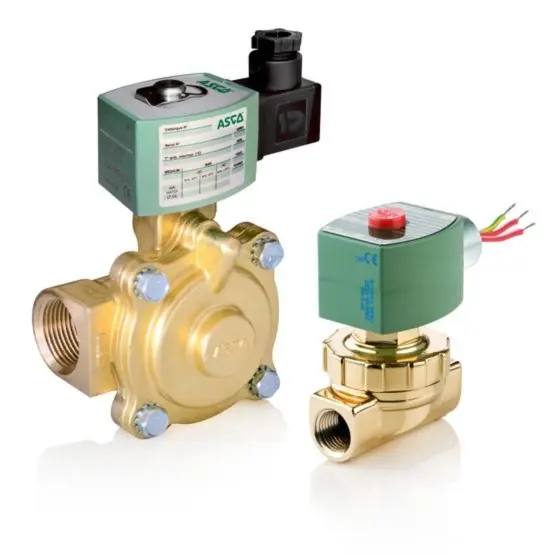

ASCO 8220G411AC110/50D – Hot Water and Steam Valve

Description

Specifications

• Function: 2 way – 2/2 Normally Closed
• Body Material: Brass
• Flow (Cv): 11.5 Cv
• Pipe/Port Type and Size: NPT 1
• Media: Steam
• Min Ambient Temperature: 32°
• Max Ambient Temperature: 140°
• Min Fluid Temperature: 32°
• Max Fluid Temperature: 210°
• Product Weight: 2.01 lbs
• Voltage and Frequency: 110 Volts AC with 50 Hz
• Watt Rating: 10.1 W
• Orifice Size: 1 in
• Coil Class: HT
• Coil Number: 238810-032-D
• Lead Length: 18 inch, Any
• Carton Note: 1 X 1 2NC BRASS 10.1/H AC
• Kit Number: 323479
• Order Code: 21933
