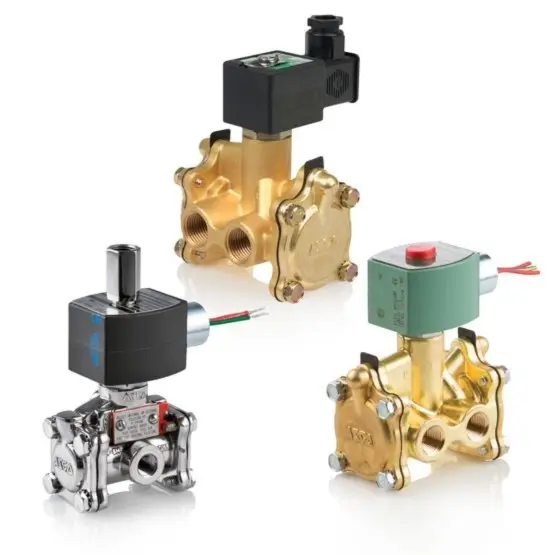

ASCO 8316G003DC12/DCD – Series 316 3-Way Solenoid Valve

Description

Specifications

• Valve Actuation: Solenoid
• Function: 3 way – 3/2 Normally Closed
• Body Material: Brass
• Flow (Cv): 4 Cv
• Pipe/Port Type and Size: NPT 3/8
• Media: Air, Inert Gas
• Min Operating Pressure (Air): 15 psi
• Max Operating Pressure (Air): 120 psi
• Min Ambient Temperature: -4°
• Max Ambient Temperature: 104°
• Min Fluid Temperature: -4°
• Max Fluid Temperature: 120°
• Product Weight: 0 lbs
• Watt Rating: 11.6 W
• Orifice Size: 5/8 in
• Coil Class: FT
• Coil Number: 238710-004-D
• Mounting Direction: 18 inch, ANY
• Carton Note: 3/8 X 5/8 3NC BRASS 11.6/F DC
• Kit Number: 318183
