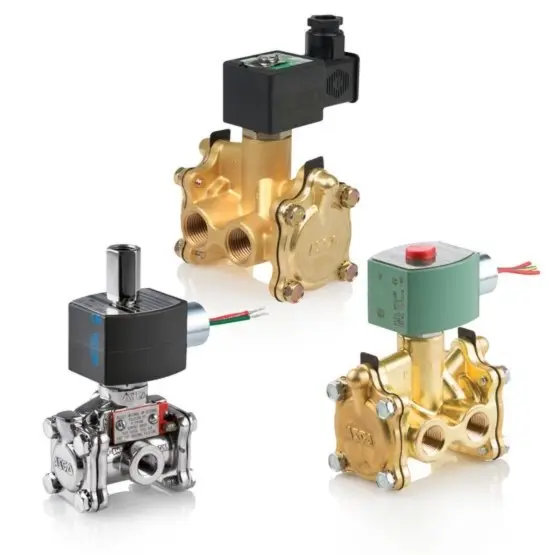

ASCO 8316G034MOAC480/60,440/50D – Solenoid Valve

Description

Specifications

• Valve Actuation: Solenoid
• Function: 3 way – 3/2 Normally Closed
• Body Material: Brass
• Flow (Cv): 12.5 Cv
• Pipe/Port Type and Size: NPT 1
• Media: Air, Inert Gas, Water
• Min Operating Pressure (Air): 10 psi
• Max Operating Pressure (Air): 150 psi
• Min Operating Pressure (Water): 10 psi
• Max Operating Pressure (Water): 125 psi
• Min Ambient Temperature: 32°
• Max Ambient Temperature: 125°
• Max Fluid Temperature: 180°
• Product Weight: 7.81 lbs
• Voltage and Frequency: 440 AC, 480 AC with 50/60 Hz
• Watt Rating: 6.1 W
• Holding Current (VA): 16
• Orifice Size: 1 in
• Coil Class: F
• Coil Number: 238210-088-D
• Mounting Direction: ANY, 18 inch
• Carton Note: 1 X 1 3NC BRASS 6.1/F AC
• Kit Number: 302661-MO
