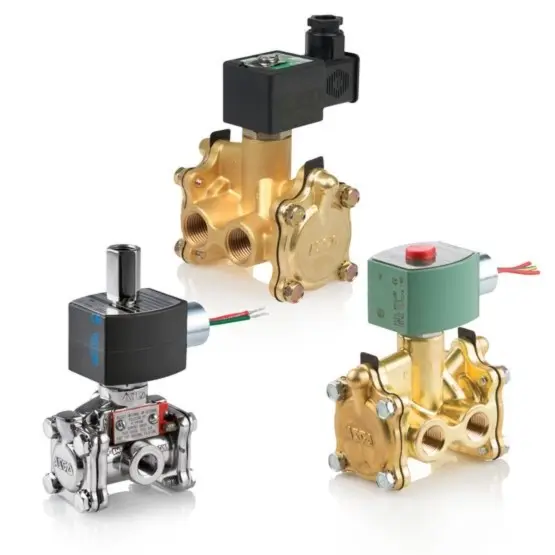

ASCO 8316G036MOAC110/50D – Solenoid Valve

Description

Specifications

• Valve Actuation: Solenoid
• Function: 3 way – 3/2 Normally Open
• Body Material: Brass
• Flow (Cv): 12.5 Cv
• Pipe/Port Type and Size: NPT 1
• Media: Air, Inert Gas, Water
• Min Operating Pressure (Air): 10 psi
• Max Operating Pressure (Air): 150 psi
• Min Operating Pressure (Water): 10 psi
• Max Operating Pressure (Water): 125 psi
• Min Ambient Temperature: 32°
• Max Ambient Temperature: 125°
• Max Fluid Temperature: 180°
• Product Weight: 7.81 lbs
• Voltage and Frequency: 110 AC with 50 Hz
• Watt Rating: 6.1 W
• Holding Current (VA): 16
• Orifice Size: 1 in
• Coil Class: F
• Coil Number: 238210-032-D
• Mounting Direction: 18 inch, ANY
• Carton Note: 1 X 1 3NO BRASS 8.1/F AC
• Kit Number: 302671-MO
