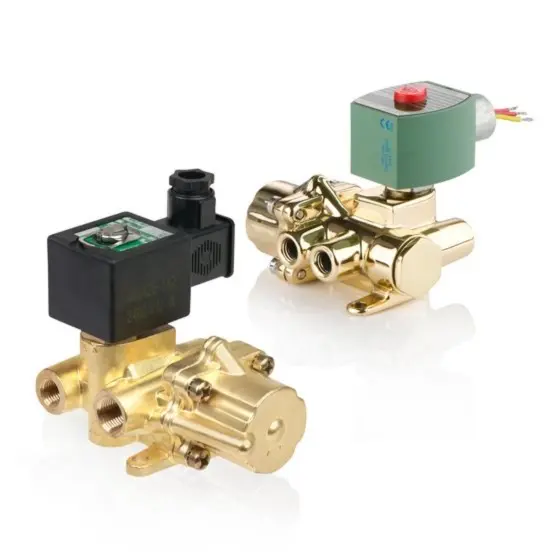

ASCO EF8344G044MOAC220/50D – Solenoid Valve

Description

Specifications

• Valve Actuation: Solenoid – Direct Acting
• Function: 4 way
• Body Material: Brass
• Flow (Cv): 0.8 Cv
• Pipe/Port Type and Size: NPT 1/4
• Media: Air, Inert Gas, Light Oil, Water
• Min Operating Pressure (Air): 10 psi
• Max Operating Pressure (Air): 250 psi
• Min Operating Pressure (Water): 10 psi
• Max Operating Pressure (Water): 200 psi
• Min Operating Pressure (Light Oil): 25 psi
• Max Operating Pressure (Light Oil): 125 psi
• Product Weight: 5.09 lbs
• Voltage and Frequency: 220 Volts AC with 50 Hz
• Watt Rating: 6.1 W
• Orifice Size: 1/4 in
• Coil Class: F
• Coil Number: 238214-058-D
• Mounting Direction: Any, 18 inch
• Carton Note: 1/4 X 1/4 4W BRASS 8.1/F AC
• Kit Number: 302721-MO
