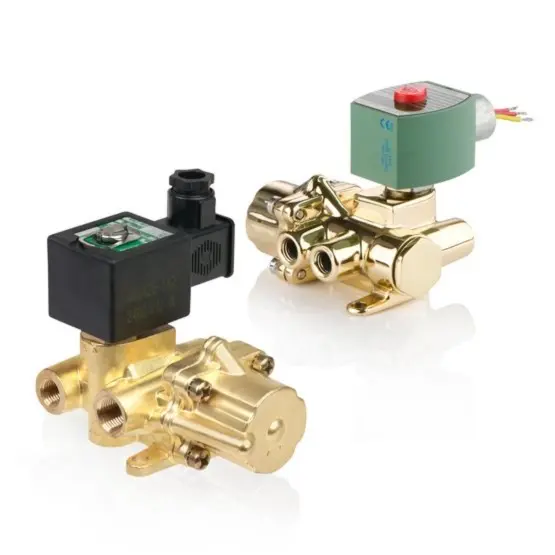

ASCO EFHC8344G070DC125/DCD – Pilot Valve

Description

Specifications

• Valve Actuation: Solenoid – Direct Acting
• Function: 4 way
• Body Material: Brass
• Flow (Cv): 0.8 Cv
• Pipe/Port Type and Size: NPT 1/4
• Media: Air, Inert Gas, Light Oil, Water
• Min Operating Pressure (Air): 10 psi
• Max Operating Pressure (Air): 125 psi
• Min Operating Pressure (Water): 10 psi
• Max Operating Pressure (Water): 125 psi
• Min Operating Pressure (Light Oil): 25 psi
• Max Operating Pressure (Light Oil): 125 psi
• Min Ambient Temperature: 32°
• Max Ambient Temperature: 104°
• Product Weight: 5.2 lbs
• Voltage and Frequency: 125 Volts DC Battery Charging
• Watt Rating: 24.6 W
• Orifice Size: 1/4 in
• Coil Class: HC
• Coil Number: 238914-335-D
• Lead Length: 18 inch, Any
• Carton Note: 1/4 X 1/4 4W BRASS 24.6/H DC
• Kit Number: 302731
