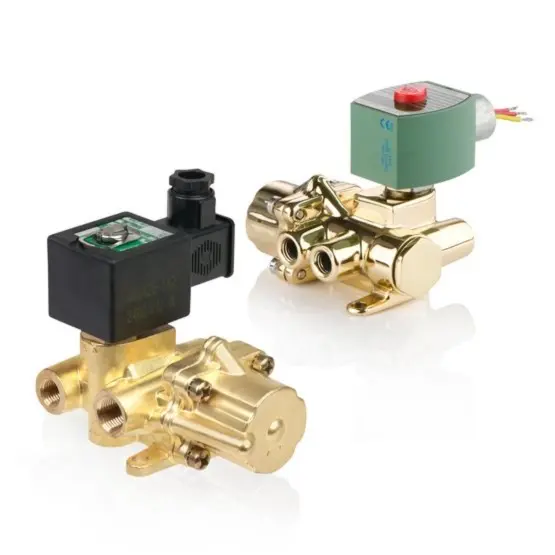

ASCO EFHT8344G052MOAC120/60,110/50D – Series 344 4-Way Poppet Solenoid Valve

Description

Specifications

• Valve Actuation: Solenoid – Direct Acting
• Function: 4 way
• Body Material: Brass
• Flow (Cv): 2.2 Cv
• Pipe/Port Type and Size: NPT 1/2
• Media: Air, Inert Gas, Light Oil, Water
• Min Operating Pressure (Air): 10 psi
• Max Operating Pressure (Air): 300 psi
• Min Operating Pressure (Water): 10 psi
• Max Operating Pressure (Water): 300 psi
• Min Operating Pressure (Light Oil): 25 psi
• Max Operating Pressure (Light Oil): 200 psi
• Product Weight: 7.7 lbs
• Voltage and Frequency: 110, 120 Volts AC with 50/60 Hz
• Watt Rating: 10.1 W
• Orifice Size: 3/8 in
• Coil Class: H
• Coil Number: 238814-032-D
• Lead Length: 18 inch, Any
• Carton Note: 1/2 X 3/8 4W BRASS 10.1/H AC
• Kit Number: 302724-MO
