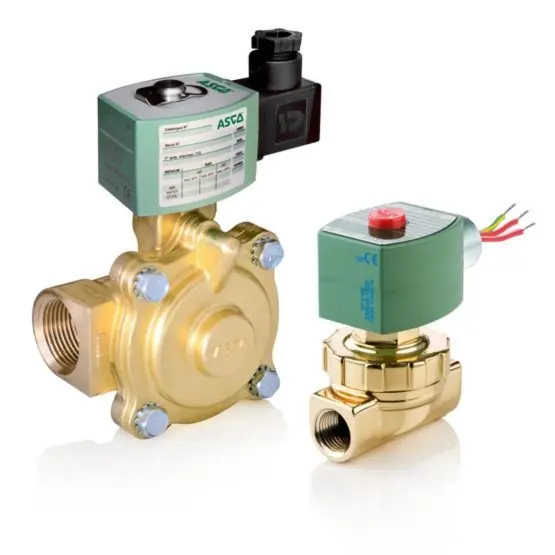

ASCO JSF8220G011AC24/60 – Solenoid Valve

Description

Specifications

• Valve Actuation: Solenoid
• Function: 2 way – 2/2 Normally Closed
• Body Material: Brass
• Flow (Cv): 22.5 Cv
• Pipe/Port Type and Size: NPT 1 1/2
• Media: Steam
• Min Ambient Temperature: 32°
• Max Ambient Temperature: 125°
• Min Fluid Temperature: 32°
• Max Fluid Temperature: 210°
• Product Weight: 6.5 lbs
• Voltage and Frequency: 24 Volts AC with 60 Hz
• Watt Rating: 10.1 W
• Orifice Size: 1-1/4 in
• Coil Class: FT
• Coil Number: 238612-005
• Mounting Direction: Any
• Carton Note: 1-1/2 X 1-1/4 2NC BRASS 10.1/F AC
• Kit Number: 304395
