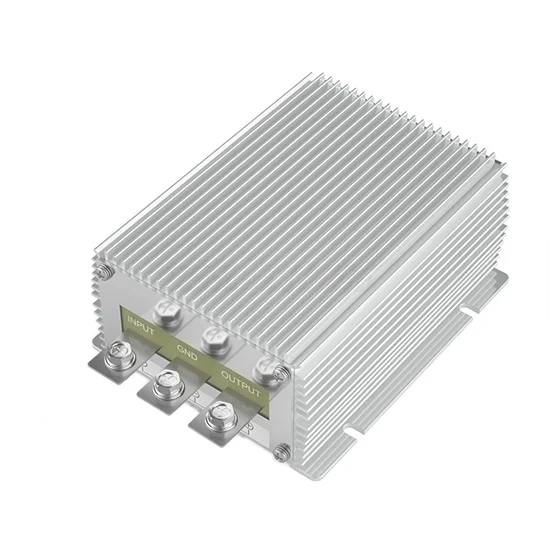

Description
12 volt to 48 volt DC boost converter with small size, IP68 waterproof rating, makes the converter ideal for use in a wide range of applications including vehicles, security systems, hospital equipment, telecommunications etc, and commonly used for radio, speaker system, club car, electric bike, solar panel, led lights.
Features
- Wide input voltage range: 10V to 25V.
- Brand-new, die-cast aluminum shell and high quality design, maximum transfer efficiency of 96%.
- This boost converter comes with waterproof lever of IP68, moisture-proof & anti-shock protection.
- Auto-recovery when device is back to normal operating.
- Built-in full protection against over/under voltage input, over-current, overload, over-temperature and short circuit.
- Industry grade DC 12V to 48V boost converter, widely used in automotive, electricity, surveillance systems, railway signals, instruments, solar generate electricity, display screen of bus and taxi, car audio device, security systems, hospital equipment, telecommunications etc.
10A DC-DC Boost Converter Specification
| Model | ATOWG-12S4810 | |
| Input | Rated voltage | 12V |
| Voltage range | 10-25V | |
| Efficiency | 96% @ 12V input | |
| Output | Voltage | 48V |
| Max. rated current | 10A | |
| Max. rated power | 480W | |
| Voltage regulation | ±1% | |
| Load regulation | 2% | |
| No load loss | 60mA | |
| Ripple & noise | 140-150mV (full load) | |
| Environment | Working temperature | -40 ~ +80℃ |
| Working humidity | 10% ~ 90%RH | |
| Storage temperature | -40 ~ +100℃ | |
| Function | Short circuit protection | YES |
| Over current protection | YES | |
| Waterproof | IP68 | |
| Over temperature protection | YES | |
| Over voltage protection | YES | |
| Mechanical | Weight | 1500g |
| Size | 150*127*63mm |
12V to 48V DC-DC Boost Converter Model Selection
| Code | Model | Price | Input Voltage | Output Voltage | Output Current | Output Power | Efficiency | Size | Download |
| 1 | ATOWG-12S4801 | $63.45 | 12V DC | 48V DC | 1 Amps | 48 Watts | 94% | 57*64*22mm | |
| 2 | ATOWG-12S4802 | $70.14 | 12V DC | 48V DC | 2 Amps | 96 Watts | 94% | 57*64*22mm | |
| 3 | ATOWG-12S4803 | $82.69 | 12V DC | 48V DC | 3 Amps | 144 Watts | 92% | 74*74*32mm | |
| 4 | ATOWG-12S4804 | $95.32 | 12V DC | 48V DC | 4 Amps | 192 Watts | 90% | 74*74*32mm | |
| 5 | ATOWG-12S4805 | $110.58 | 12V DC | 48V DC | 5 Amps | 240 Watts | 95% | 74*74*32mm | |
| 6 | ATOWG-12S4808 | $175.22 | 12V DC | 48V DC | 8 Amps | 384 Watts | 95% | 100*80*39mm | |
| 7 | ATOWG-12S4810 | $213.78 | 12V DC | 48V DC | 10 Amps | 480 Watts | 96% | 150*127*63mm | |
| 8 | ATOWG-12S4815 | $295.62 | 12V DC | 48V DC | 15 Amps | 720 Watts | 94% | 150*127*63mm | |
| 9 | ATOWG-12S4820 | $367.36 | 12V DC | 48V DC | 20 Amps | 960 Watts | 93% | 220*127*63mm |
Note: The series of 12V to 48V DC-DC boost converter models are all here, check the parameter carefully from the table and select the right converter power supply when place the order.
Tips: How to use DC-DC boost converter in photovoltaic power generation system?
In photovoltaic power generation systems, DC-DC boost converters are used to step up the lower DC voltage generated by photovoltaic cells to a voltage level suitable for storage or use. The output voltage of photovoltaic cells is typically low and fluctuates depending on light intensity. Step Converter can stabilize the output voltage and optimize the efficiency of photovoltaic systems. Its working principle is to increase the input voltage and stabilize the output through inductive energy storage and switching element control. The converter can also be combined with the maximum power point tracking (MPPT) algorithm to ensure that the photovoltaic cells always work at the highest efficiency point and improve the overall energy conversion efficiency.
