Lascar PanelPilotACE TFT Multi-Function Panel Meters for Voltage, Current

Description

Development Kit for SGD 70-A Display

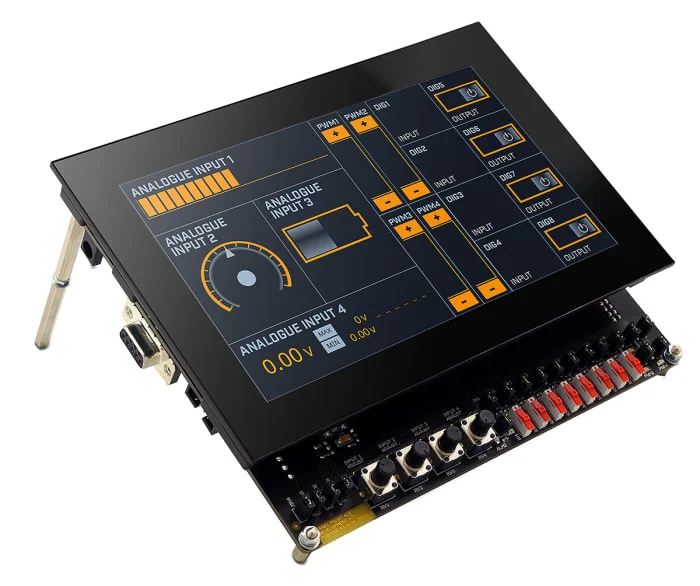

The SGD 70-A DK+ is the development kit for the 7” PanelPilotACE compatible display, SGD 70-A. The development board itself allows users to quickly connect to and test all of the input and output functionality of the PanelPilotACE display.

The kit includes a development board, an SGD 70-A PanelPilotACE display, a USB cable and a power supply. The development board includes LEDs and switches for digital I/O’s, four potentiometers to generate analogue inputs, variable brightness LEDs for PWM outputs and a prototyping area for testing circuitry. Connections are also available for the display’s RS232, RS485, SPI and I²C functionality.
