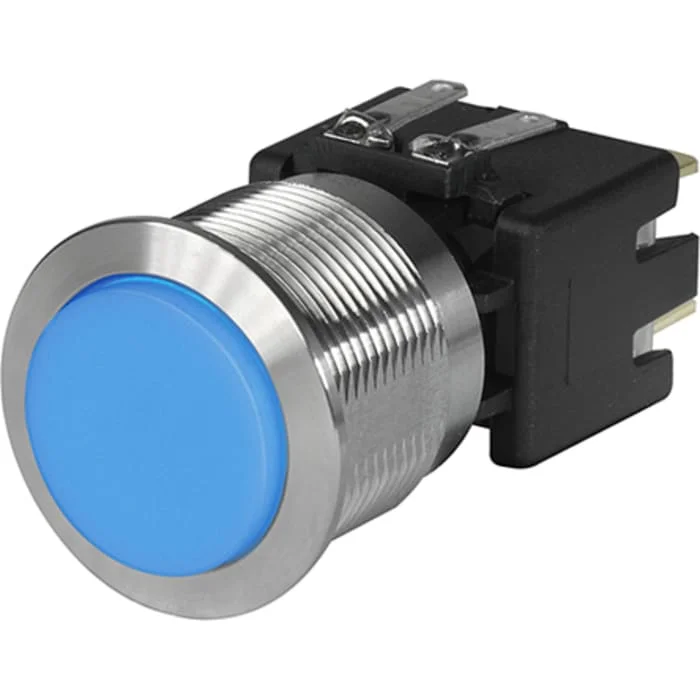

Schurter MSM LA CS 19 Series Illuminated Push Button Switch, Latching, Panel, 19.1 mm Cutout, DPDT, Blue LED, IP40,

Description

Anti-Vandal M19 & M22 Push Button Switches – MSM LA CS Series

The sturdy stainless steel housing and the actuator made of scratch-proof ceramic make the MSM LA CS latching action switches especially well suited for use in equipment operating in harsh environments, or applications that require protection against vandalism. These include, vending machines, ticket machines, equipment in restaurant operations, public and sanitary facilities.
With actuator travel greater than 5 mm, the MSM LA CS is ideal for applications where increased feedback of the switching status (ON/OFF) is required. In the OFF state, the actuator position protrudes from the housing; in the ON state, it is recessed to the housing. This makes for user-friendly actuation and also prevents inadvertent switching.
